Widgets

Widgets are the primary content blocks on MyDash dashboards. MyDash combines two widget sources:

• Nextcloud Dashboard API widgets — every widget registered by an installed Nextcloud app, exposed via the v1 (IAPIWidget) or v2 (IAPIWidgetV2) interface, plus the legacy callback-based widgets.
• Registry-driven custom widgets — a curated set of 17 in-app widget types defined in src/constants/widgetRegistry.js. Each entry pairs a Vue renderer with an Add Widget sub-form and a defaultContent shape.

This page documents the registry-driven catalog. For app-level Dashboard API widgets, see the host app's documentation.

Widget catalog

#	Type	Display name	Icon	Use it for
1	label	Label	FormatTitle	Short, single-line headings inside a cell
2	text	Text	FormatText	Multi-line markdown / HTML / table content
3	image	Image	Camera	A single image (URL or Files-picker)
4	link	Link Button	LinkVariant	One-click action / external link button
5	nc-widget	Nextcloud Widget	ViewDashboard	Proxy for any installed NC Dashboard widget
6	header	Header Banner	ViewHeadline	Hero banner with overlay + CTA
7	divider	Divider	Minus	Visual separator (line / heading / whitespace)
8	files	Files	Folder	Inline Files browser (folder or file pin)
9	people	People	AccountGroup	Roster of users with filters & birthdays
10	quicklinks	Quicklinks	Star	Tile-grid of favourite links
11	news	News	RssBox	Aggregated RSS / Atom feeds
12	video	Video	Video	Embedded video (URL or Files)
13	calendar	Calendar	Calendar	Internal NC calendars + external ICS
14	links	Links	LinkBoxVariant	Sectioned link directory
15	menu	Menu	ViewDashboard	Dropdown / horizontal navigation menu
16	container	Container	ViewDashboard	Recursive sub-grid host (max depth 3)
17	tile	Tile	ViewGrid	Single icon-tile shortcut

How widgets are persisted

Every placement is one row in oc_mydash_widget_placements:

Column	Stores
widget_id	The registry type key (e.g. label) — or a Nextcloud Dashboard widget id
grid_x / grid_y / grid_width / grid_height	GridStack position
style_config	Optional per-placement style overrides (JSON)
content	Per-type configuration blob (JSON) — shape matches the type's defaultContent
custom_title / custom_icon	Per-placement title/icon overrides
tile_*	Legacy columns used by the standalone tile flow

The content column was added in Version001025Date20260508060000 to make the registry-driven types persistable end-to-end.

REST API

Method	Endpoint	Description
GET	/api/widgets	List Nextcloud Dashboard API widgets visible to the user
GET	/api/widgets/items	Fetch items for one or more widgets
POST	/api/dashboard/{dashboardId}/widgets	Add a placement (accepts widgetId, grid coords, optional content)
PUT	/api/widgets/{placementId}	Update grid / style / content of a placement
DELETE	/api/widgets/{placementId}	Remove a placement

Known polish items

• The wrapper still draws a "Widget" header above chrome-less types (label, divider, header). The data and rendering are correct; the title row is just visual noise on those three. Tracked as a follow-up.
• The Add button can stay disabled when the widget type is freshly switched in the modal until the user touches a sub-form input — the validationTick watcher in AddWidgetModal.vue only bumps on update:content events, not on type changes. Workaround: edit any field once after switching type.

---

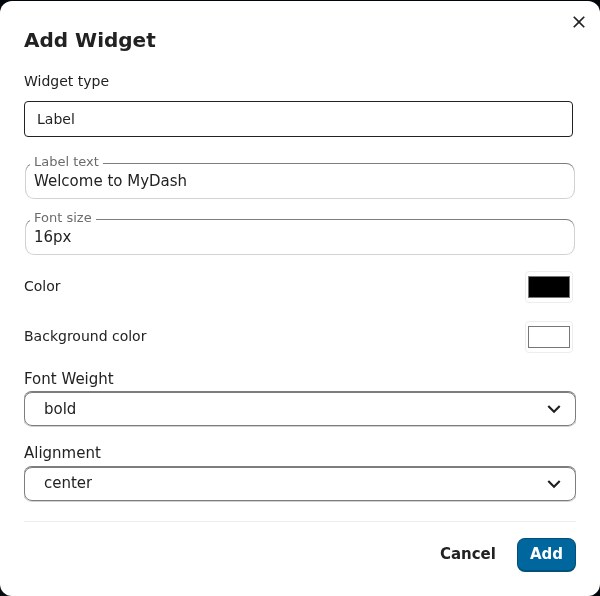

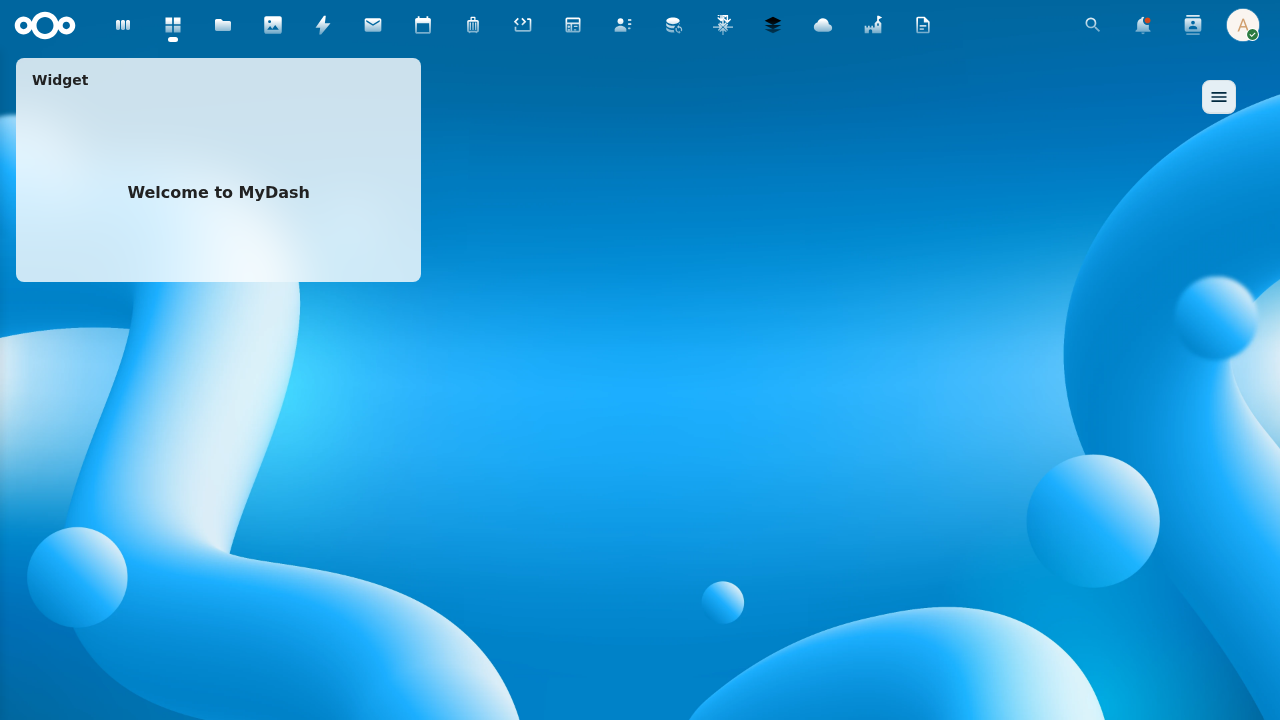

label

A short, single-line plain-text heading inside a dashboard cell. Content is rendered via Vue interpolation only (never v-html), so any HTML inside text is shown as literal characters — XSS-safe by construction.

Renderer: LabelWidget.vue · Form: LabelForm.vue · Spec: openspec/specs/label-widget/spec.md

Field	Default	Notes
text	''	Heading text. Empty → renderer falls back to "Label".
fontSize	16px	Any CSS length.
color	var(--color-main-text)	Empty = inherit theme.
backgroundColor	transparent	Cell background.
fontWeight	bold	normal / bold.
textAlign	center	left / center / right.

---

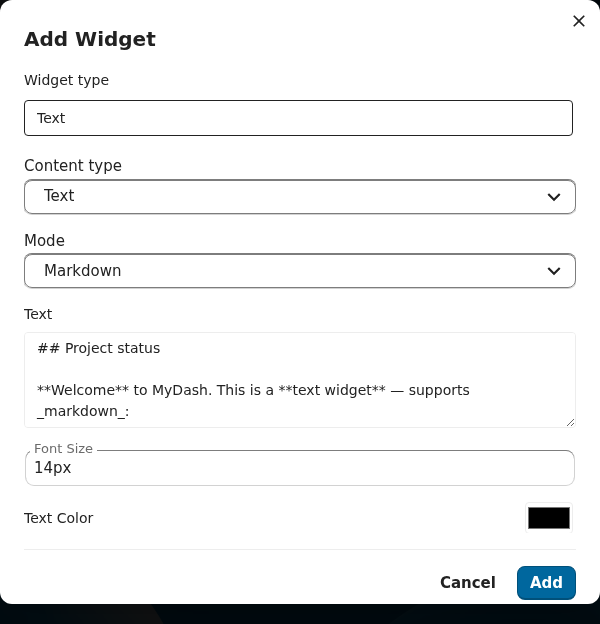

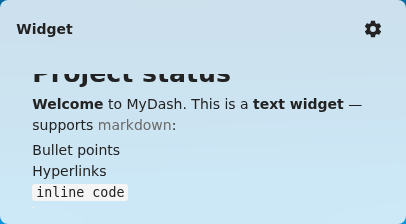

text

Multi-line text block with markdown / HTML / table rendering modes. New placements default to markdown; rows that pre-date contentMode fall through to the legacy HTML branch.

Renderer: TextDisplayWidget.vue · Form: TextDisplayForm.vue · Spec: openspec/specs/text-display-widget/spec.md

Field	Default	Notes
text	''	Body. Markdown when contentMode='markdown'.
fontSize	14px
color / backgroundColor	'' / ''
textAlign	left
contentMode	markdown	markdown / html.
tableMode / tableData	false / null	Switches the renderer to a structured table.

---

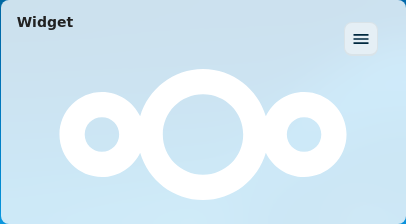

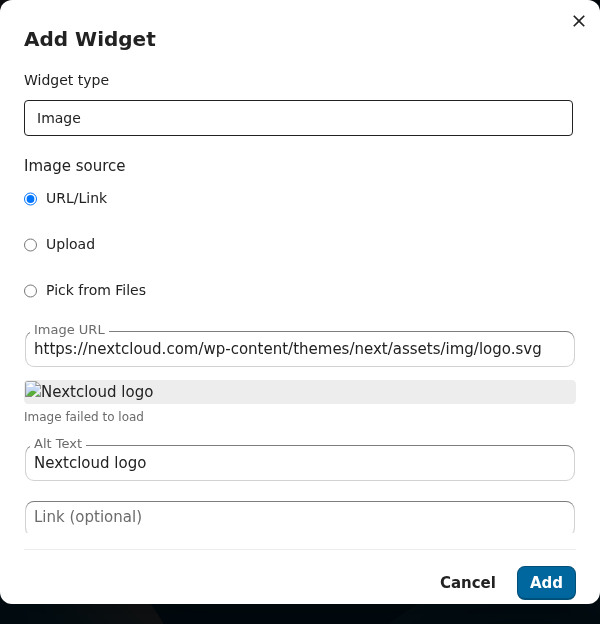

A single image with three sources: external URL, uploaded file, or a Files-picker pin.

Renderer: ImageWidget.vue · Form: ImageForm.vue · Spec: openspec/specs/image-widget/spec.md

Field	Default	Notes
url	''	External URL or Files path.
alt	''	Accessible alt text.
link	''	Optional click-through URL.
fit	cover	cover / contain / fill / none.

---

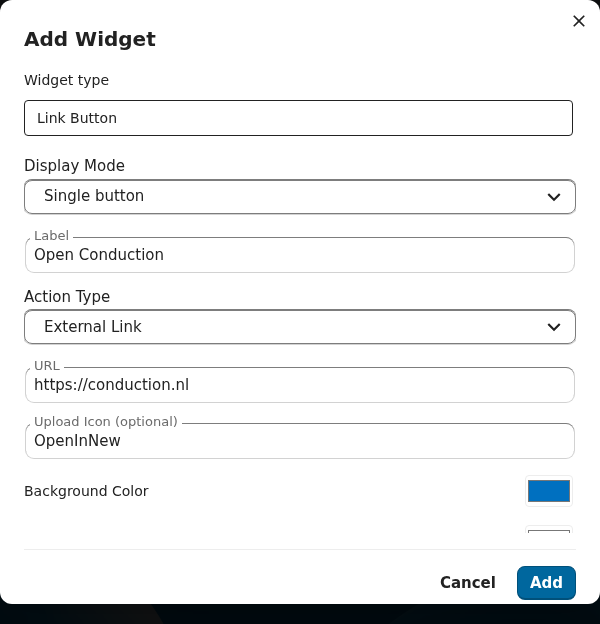

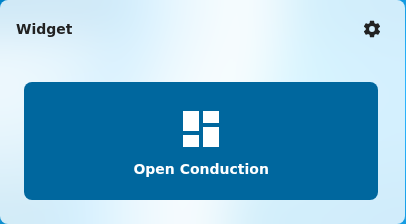

link

A single big call-to-action button. The displayMode='button' legacy mode draws one button; displayMode='list' toggles the alternate mode where links[] is rendered inline.

Renderer: LinkButtonWidget.vue · Form: LinkButtonForm.vue · Spec: openspec/specs/link-button-widget/spec.md

Field	Default	Notes
label	''	Button text.
url	''	Destination.
icon	''	Material Design icon name.
actionType	external	external / internal.
backgroundColor / textColor	'' / ''
displayMode	button	button / list.
listOrientation / listItemGap	vertical / normal	List-mode only.
links[]	[]	List-mode children.

---

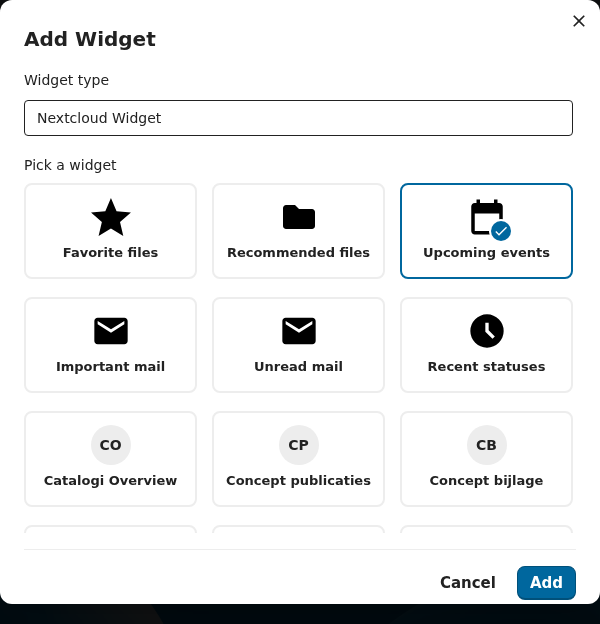

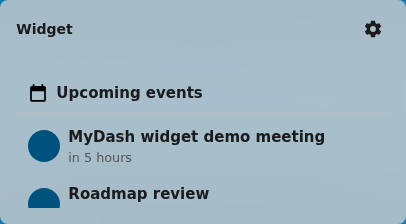

nc-widget

A proxy that mounts any Nextcloud Dashboard API widget inside a MyDash placement. Use it to drop the standard "Upcoming events", "Important mail", "Favorites", etc. widgets onto a MyDash dashboard.

Renderer: NcDashboardWidget.vue · Form: NcDashboardForm.vue · Spec: openspec/changes/nc-dashboard-widget-proxy/

Field	Default	Notes
widgetId	''	Nextcloud Dashboard widget id (e.g. calendar, mail).
displayMode	vertical	vertical / horizontal.

---

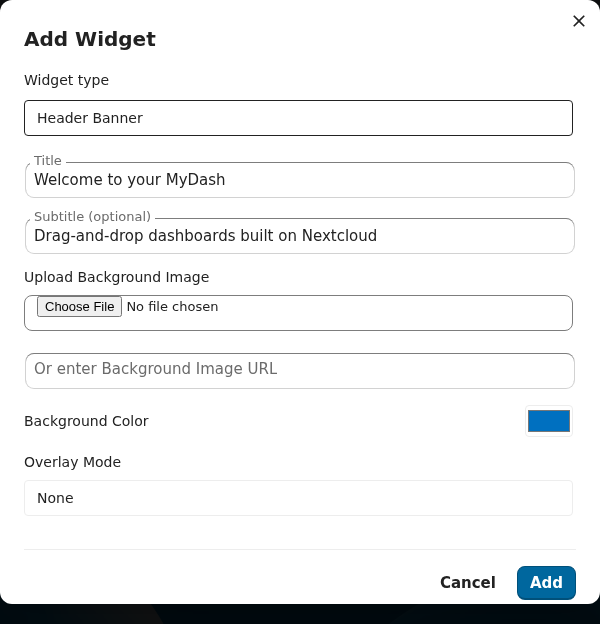

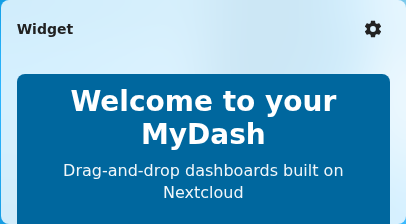

header

A hero banner with optional background image, overlay, vertical/horizontal alignment, and a Call-to-Action button. The form's validate() requires a non-empty title, http(s) for any background URL, and CTA label/url paired (both or neither).

Renderer: HeaderWidget.vue · Form: HeaderForm.vue · Spec: openspec/specs/header-banner-widget/spec.md

Field	Default	Notes
title	''	Required.
subtitle	''
backgroundImageUrl	''	Must be http(s) if set.
backgroundImageFileId	null	Files-picker source.
backgroundColor	''
overlayMode	none	none / solid / gradient.
overlayColor / overlayOpacity	'' / 0.4
textColor	''
textAlign / verticalAlign	center / middle
height	medium	small / medium / large.
cta	null	{label, url, icon} or null.

---

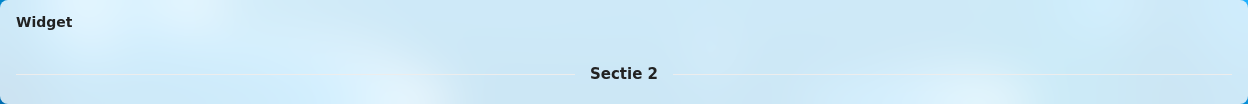

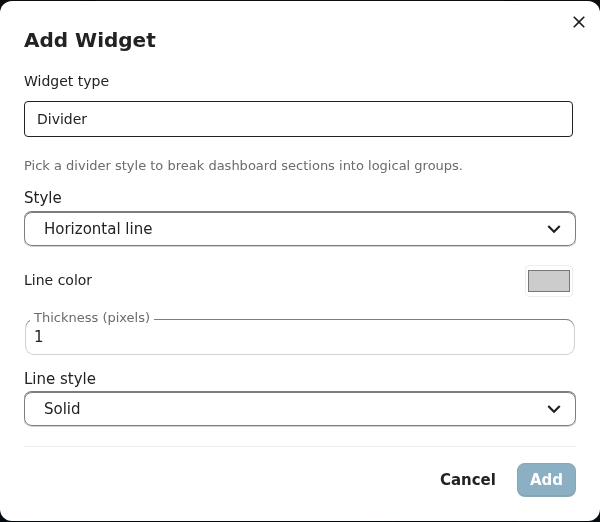

divider

A visual separator between sections. Three styles:

• line — horizontal line with optional thickness/color/style
• heading-break — line + heading text (heading is required for this style)
• whitespace — pure spacing, no visible line

Renderer: DividerWidget.vue · Form: DividerForm.vue · Spec: openspec/specs/divider-widget/spec.md

Field	Default	Notes
style	line	line / heading-break / whitespace.
lineColor / lineThickness / lineStyle	'' / 1 / solid
whitespaceSize	medium	small / medium / large.
headingText	''	Required for heading-break.

---

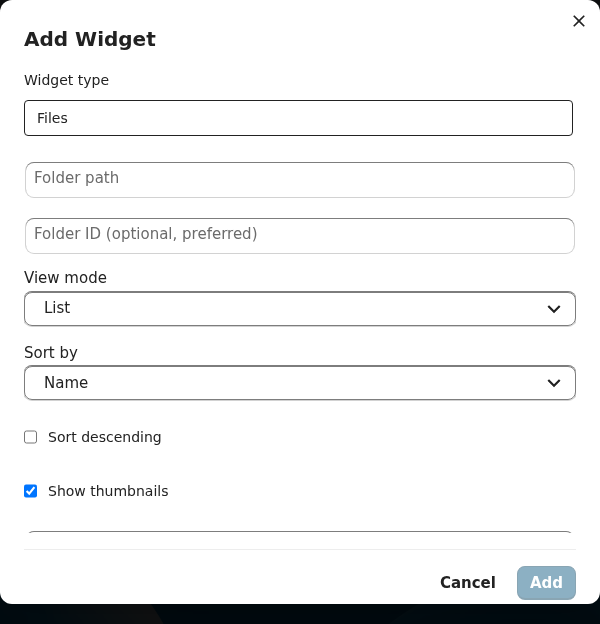

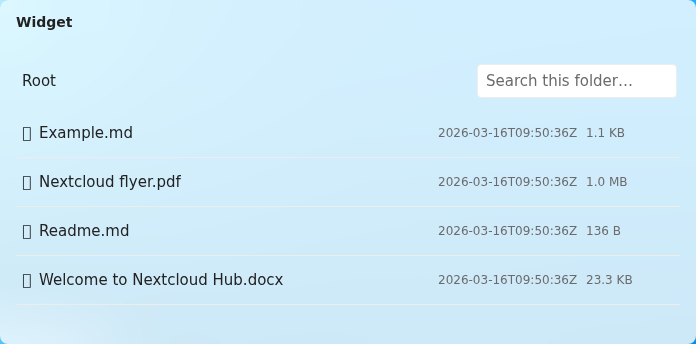

files

Inline Files browser pinned to a folder or single file. Supports search, sort, optional upload/delete, and a mime-type filter.

Renderer: FilesWidget.vue · Form: FilesForm.vue · Spec: openspec/specs/files-widget/spec.md

Field	Default	Notes
folderPath	''	Absolute Files path. Empty = error placeholder.
fileId	null	Pin a single file instead of a folder.
viewMode	list	list / grid.
showThumbnails	true
mimeTypeFilter[]	[]	e.g. ['image/*'].
allowUpload / allowDelete	false / false
sortBy / sortDescending	name / false

---

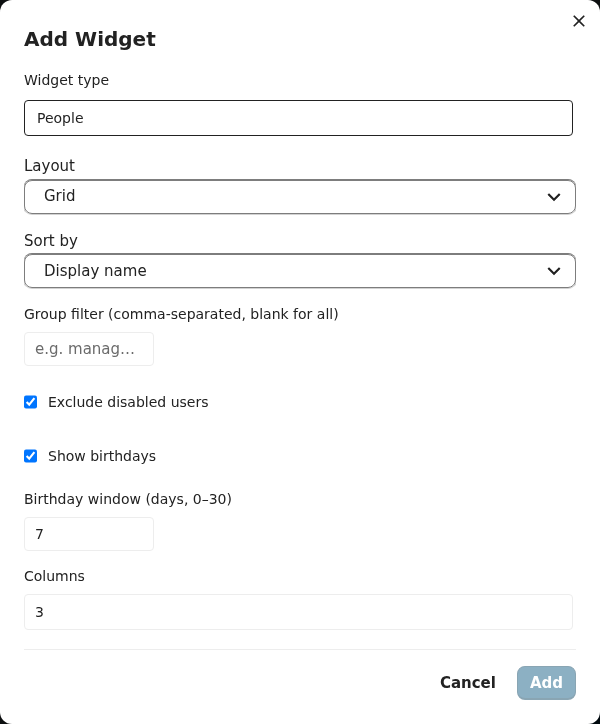

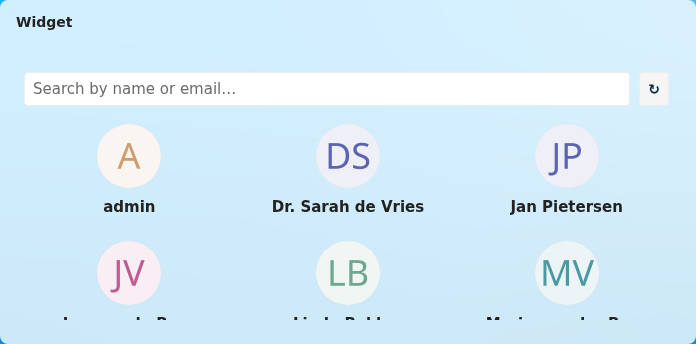

people

Roster of users with two selection modes (filter for rule-based, manual for hand-picked), per-field display toggles, and a birthday window.

Renderer: PeopleWidget.vue · Form: PeopleForm.vue · Spec: openspec/specs/people-widget/spec.md

Field	Default	Notes
layout	grid	grid / list.
selectionMode	filter	filter / manual.
selectedUsers[]	[]	Manual mode.
filters[] / filterOperator	[] / AND	Filter mode.
excludeDisabled	true
showBirthdays / birthdayWindowDays	true / 7
sortBy / columns	displayName / 3
showFields	{displayName, role, organisation, email, phone, avatar, birthdate}	All true by default.

---

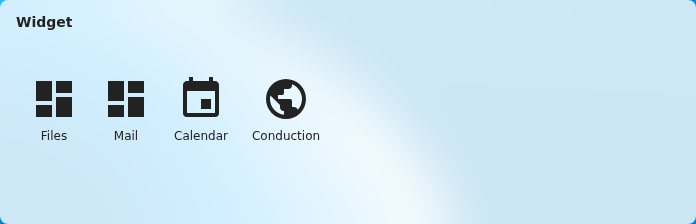

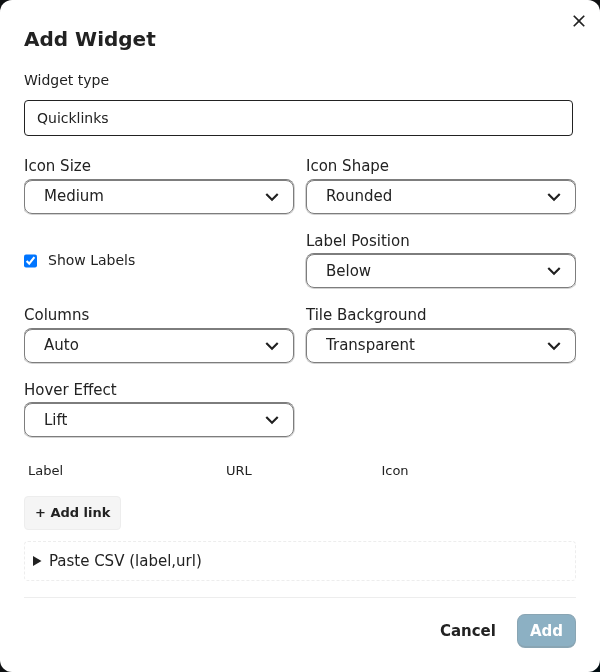

quicklinks

A tile grid of favourite links — each with its own icon, label, and color. Useful for a "starter row" or as a compact navigation cluster.

Renderer: QuicklinksWidget.vue · Form: QuicklinksForm.vue · Spec: openspec/specs/quicklinks-widget/spec.md

Field	Default	Notes
links[]	[]	{id, label, url, icon, backgroundColor, textColor}.
iconSize	medium	small / medium / large.
iconShape	rounded	rounded / circle / square.
showLabels / labelPosition	true / below	below / overlay / right.
columns	auto	Number or auto.
tileBackgroundStyle	transparent	transparent / solid / outlined.
hoverEffect	lift	lift / fade / none.

---

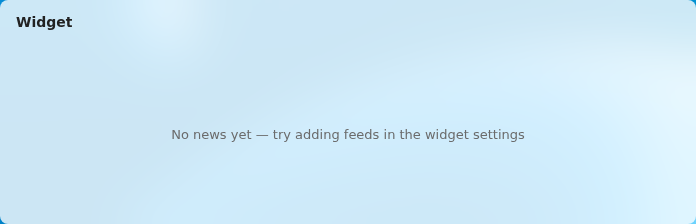

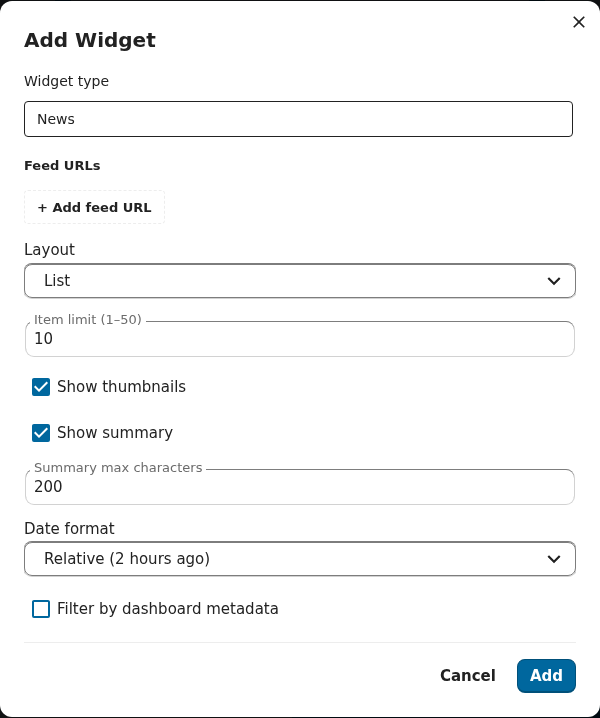

news

Aggregated RSS / Atom feeds. The renderer fetches via the backend (/api/widgets/news/{placementId}/items) so CSP and CORS aren't issues.

Renderer: NewsWidget.vue · Form: NewsForm.vue · Spec: openspec/specs/news-widget/spec.md

Field	Default	Notes
feedUrls[]	[]	One or many RSS/Atom URLs.
layout	list	list / cards.
itemLimit	10
showThumbnails	true
showSummary / summaryMaxChars	true / 200
dateFormat	relative	relative / absolute.
metadataFilter	null	Optional regex / category filter.

---

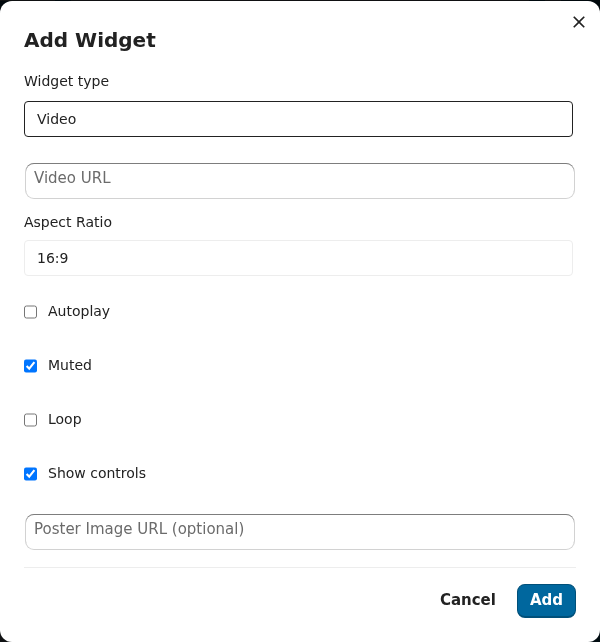

video

Embedded video — either an external URL (mp4 / webm) or a Files-picker pin.

Renderer: VideoWidget.vue · Form: VideoForm.vue · Spec: openspec/specs/video-widget/spec.md

Field	Default	Notes
sourceType	null	url / file.
videoUrl	''	Used when sourceType='url'.
fileId	null	Used when sourceType='file'.
autoplay / muted / loop / controls	false / true / false / true
aspectRatio	16:9	16:9 / 4:3 / 1:1.
posterUrl	''	Optional thumbnail.

---

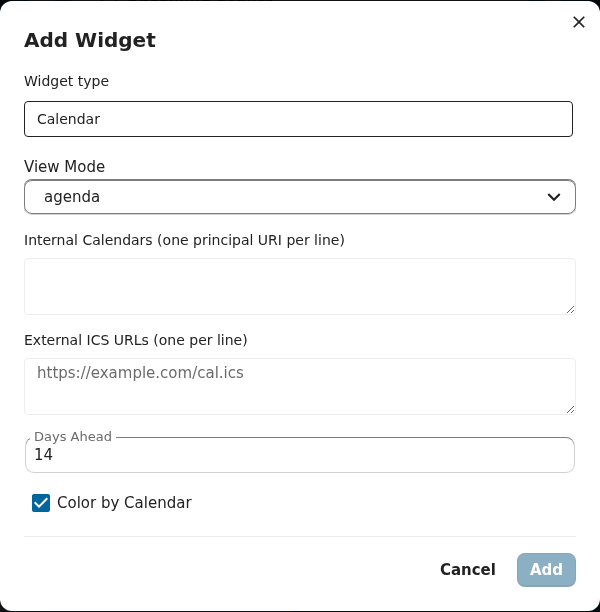

calendar

Agenda of upcoming events. Pulls from selected internal Nextcloud calendars and any number of external ICS feeds.

Renderer: CalendarWidget.vue · Form: CalendarForm.vue · Spec: openspec/specs/calendar-widget/spec.md

Field	Default	Notes
internalCalendars[]	[]	Calendar names from CalDAV.
externalIcsUrls[]	[]	Public ICS URLs.
viewMode	agenda	agenda / month.
daysAhead	14	Look-ahead window.
colorByCalendar	true

---

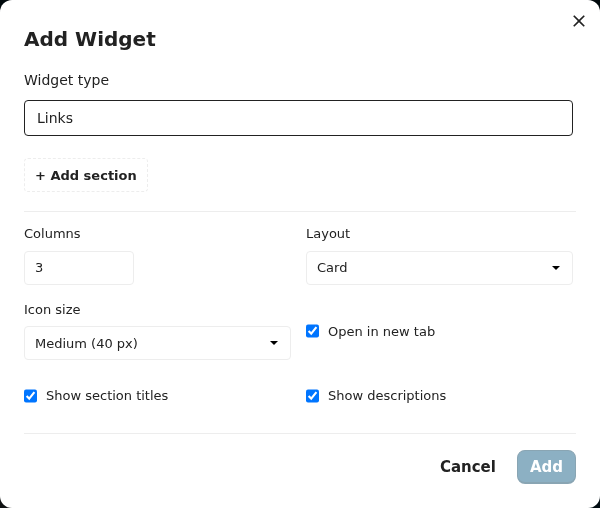

links

A sectioned link directory — each section has a title and N links. Ideal for an intranet-style "useful links" panel.

Renderer: LinksWidget.vue · Form: LinksForm.vue · Spec: openspec/specs/links-widget/spec.md

Field	Default	Notes
sections[]	[]	{id, title, links: [{id, label, url, description, icon}]}.
columns	3
linkLayout	card	card / inline.
iconSize	medium
openInNewTab	true
showSectionTitles / showLinkDescriptions	true / true

---

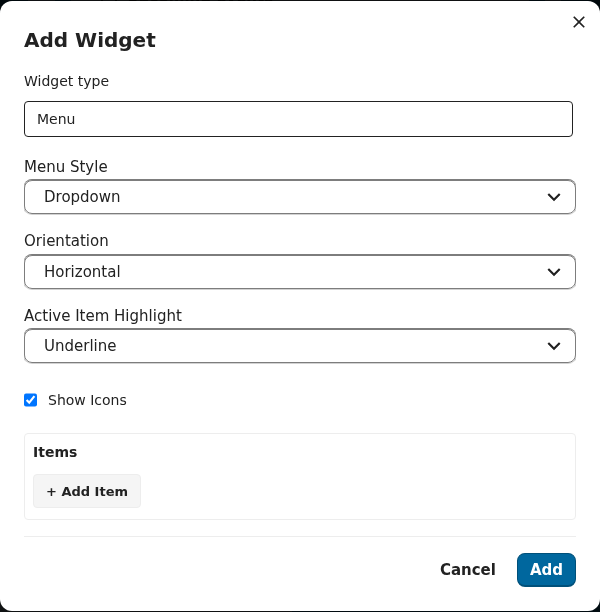

menu

A navigation menu — dropdown or always-expanded, horizontal or vertical.

Renderer: MenuWidget.vue · Form: MenuForm.vue · Spec: openspec/specs/menu-widget/spec.md

Field	Default	Notes
items[]	[]	{id, label, url, icon, children?}.
style	dropdown	dropdown / expanded.
orientation	horizontal	horizontal / vertical.
showIcons	true
expandedByDefault	false
activeItemHighlight	underline	underline / background / none.

---

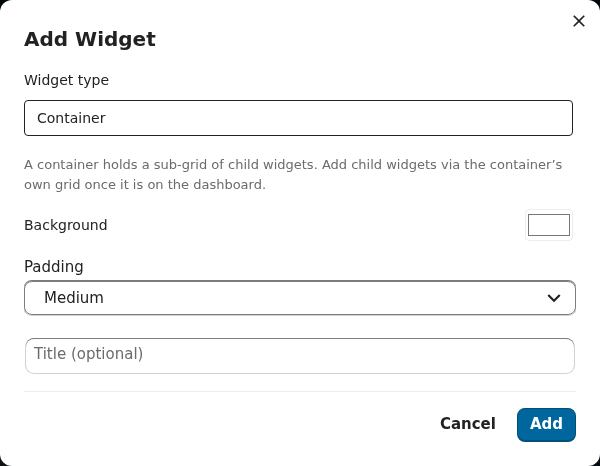

container

A recursive sub-grid host. Children live in content.placements[] and render through the inner GridStack instance bounded by the container's outer cell. Server-side REQ-CONT-006 caps recursion at 3 levels deep so a malformed payload can't blow up the renderer.

Renderer: ContainerWidget.vue · Form: ContainerForm.vue · Spec: openspec/specs/container-widget/spec.md

Field	Default	Notes
placements[]	[]	Child placements (recursive — same shape as a top-level placement).
backgroundColor	transparent
padding	medium	none / small / medium / large.
title	''	Optional section title.

---

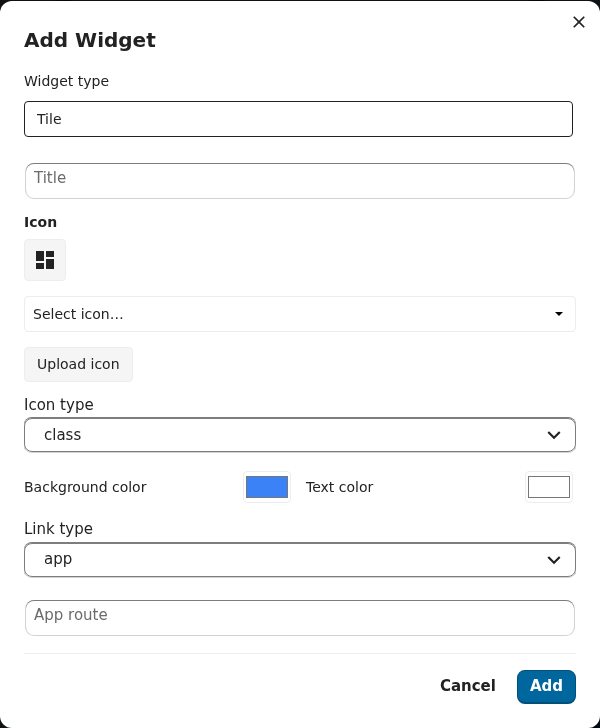

tile

The registry-driven replacement for the deprecated standalone tile-creation flow. The renderer reads from BOTH the new inline content.{...} shape AND the legacy flat placement.tile* columns, so dashboards holding tile placements created via the deprecated oc_mydash_tiles flow keep rendering without a migration step.

Renderer: TileWidget.vue · Form: TileForm.vue · Spec: openspec/specs/tiles/spec.md

Field	Default	Notes
title	''	Tile label.
icon	''	Material icon class or SVG path.
iconType	class	class / svg.
backgroundColor / textColor	#3b82f6 / #ffffff
linkType	app	app / external / internal.
linkValue	''	App id, URL, or internal route.
